Single Metal Bottom Heater 1 or 3 Phase


Product Description

Durable, efficient chemical heater.

  • Features

    • Heavy wall metal sheaths available in steel, 304 stainless steel, 316 stainless steel and titanium.
    • Watt densities up to 35 watts/square inch (5.4 w/cm²).
    • Vapor resistant, flame retardant polypropylene terminal enclosure with 3 ft (.9m) flexible PVC liquid tight conduit.
    • Grounded construction and built in thermal protector. Replaceable P1 protector standard for solutions up to 180°F(82°C).
    • Certification: cULus (except steel and 600 volts)
  • Specifications

    • 1000 - 12000 watts
    • 120 to 600 volts
  • Options Available (consult factory)

    • Resettable thermal protectors
    • Lower watt densities for highly viscous solutions.
    • Custom configurations and lengths
    • Custom wire and conduit lengths

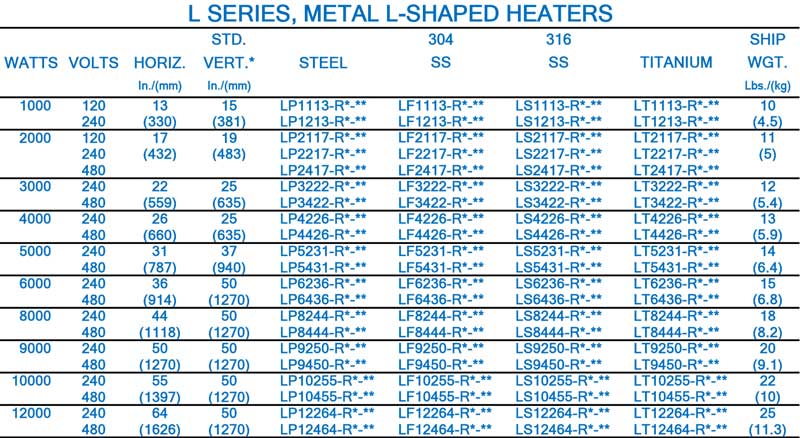

Immersion Heaters - Metal Heaters - LMOTS chart


Immersion Heaters - Metal Heaters - lmots image


Triple Metal Bottom Style 3 Phase Heater

Product Description

Durable, efficient chemical heater.

  • Features

    • Heavy wall metal sheaths available in steel, 304 stainless steel, 316 stainless steel and titanium.
    • Watt densities up to 35 watts/square inch (5.4 w/cm²).
    • Vapor resistant, flame retardant polypropylene terminal enclosure with 3 ft (.9m) flexible PVC liquid tight conduit.
    • Grounded construction and built in thermal protector. Replaceable P1 protector standard for solutions up to 180°F(82°C).
    • Certification: cULus (except steel and 600 volts)
  • Specifications

    • 1000 - 12000 watts
    • 120 to 600 volts
  • Options Available (consult factory)

    • Resettable thermal protectors
    • Lower watt densities for highly viscous solutions.
    • Custom configurations and lengths
    • Custom wire and conduit lengths

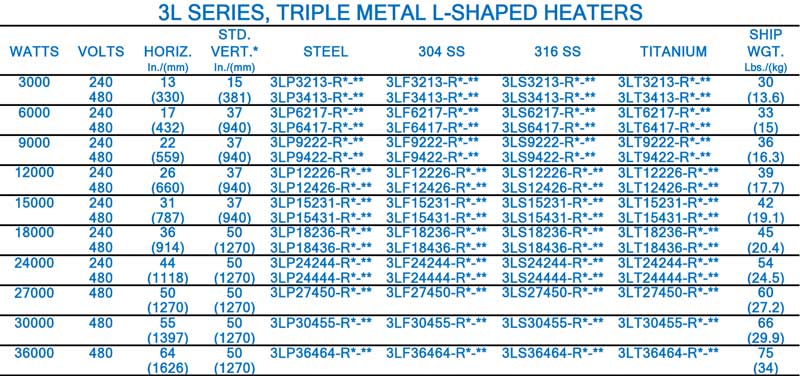

Immersion Heaters - Metal Heaters 3lmots chart


Immersion Heaters 3LMOTS


For Pricing Information Please Telephone or Email - Thank You!
