3 Phase Bottom Heater - 3HXOL Series


Product Description

Excellent chemical resistance to aggressive acids.

  • Features

    • PTFE sleeved 304 stainless elements inert to most solutions up to 212°F (100°C).
    • Low watt density design 10 watts/square inch (1.5w/cm²).
    • Vapor resistant, flame retardant polypropylene terminal enclosure with 3 ft (.9m) flexible PVC liquid tight conduit.
    • Grounded internal metal element and built in thermal protector. Replaceable P1 protector standard for solutions up to 180°F(82°C).
    • Certification: cULus. CE certified (except 600 volts).
  • Specifications

    • 3000 - 18000 watts
    • 120 to 600 volts (600 volts on 12,000 watts or lower only)
  • Options Available (consult factory)

    • Resettable thermal protectors
    • Polypropylene guards (sold separately)
    • Custom configurations and lengths
    • Custom wire and conduit lengths

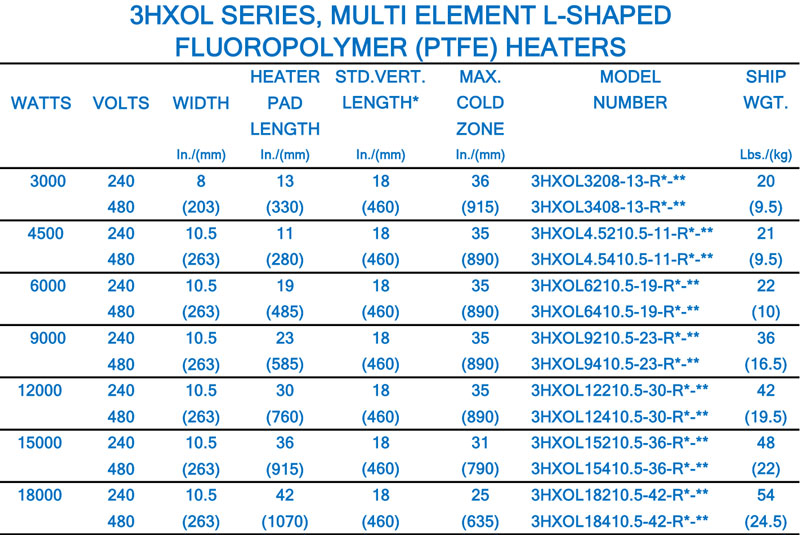

3hxol fluoropolymer heater chart


3hxol style fluoropolymer heater


Excellent chemical resistance to aggressive acids - 3HX Series


  • Features
    • PTFE sleeved 304 stainless elements inert to most solutions up to 212°F (100°C).
    • Low watt density design 10 watts/square inch (1.5w/cm²).
    • Vapor resistant, flame retardant polypropylene terminal enclosure with 3 ft (.9m) flexible PVC liquid tight conduit.
    • Grounded internal metal element and built in thermal protector. Replaceable P1 protector standard for solutions up to 180°F(82°C).
    • Certification: cULus. CE certified (except 600 volts).
  • Specifications
    • 1000 - 6000 watts
    • 120 to 600 volts
  • Options Available (consult factory)
    • Resettable thermal protectors
    • Polypropylene guards (sold separately)
    • Custom configurations and lengths
    • Custom wire and conduit lengths

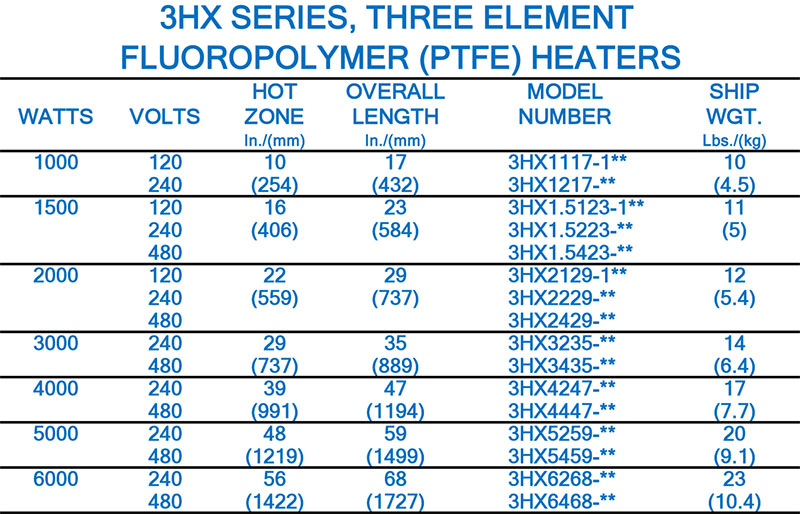

3hx style fluoropolymer heater


3 phase over the side
