Low Profile Over the Side Single Phase Heater


Product Description

Excellent chemical resistance to aggressive acids.

  • Features

    • PTFE sleeved 304 stainless elements inert to most solutions up to 212°F (100°C).
    • Low watt density design 10 watts/square inch (1.5w/cm²).
    • Vapor resistant, flame retardant polypropylene terminal enclosure with 3 ft (.9m) flexible PVC liquid tight conduit.
    • Grounded internal metal element and built in thermal protector. Replaceable P1 protector standard for solutions up to 180°F(82°C).
    • Certification: cULus. CE certified (except 600 volts).
  • Specifications

    • 500 - 6000 watts
    • 120 to 600 volts (600 volts on 4500 watts or lower only)
  • Options Available (consult factory)

    • Resettable thermal protectors
    • Polypropylene guards (sold separately)
    • Custom configurations and lengths
    • Custom wire and conduit lengths

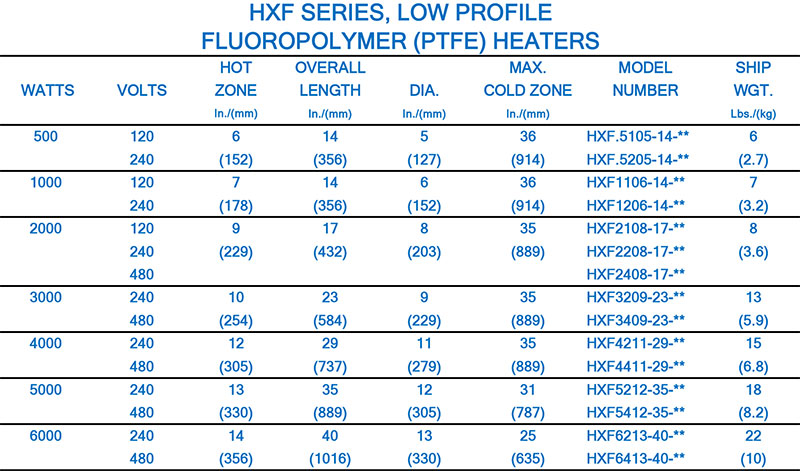

hxf low profile lg


low profile over side single phase


Low Profile Bottom Heater


Product Description

Excellent chemical resistance to aggressive acids.

  • Features

    • PTFE sleeved 304 stainless elements inert to most solutions up to 212°F (100°C).
    • Low watt density design 10 watts/square inch (1.5w/cm²).
    • 4 foot (1.2m) continuous fluoropolymer (PTFE) cable leading to a vapor resistant terminal enclosure and 3 ft (.9m) flexible PVC liquid tight conduit.
    • Grounded internal metal element and built in thermal protector. Replaceable P1 protector standard for solutions up to 180°F(82°C).
    • Certification: cULus. CE certified (except 600 volts).
  • Specifications

    • 500 - 6000 watts
    • 120 to 600 volts (600 volts on 4500 watts or lower only)
  • Options Available (consult factory)

    • Resettable thermal protectors
    • Polypropylene guards (sold separately)
    • Custom configurations and lengths
    • Custom wire and conduit lengths

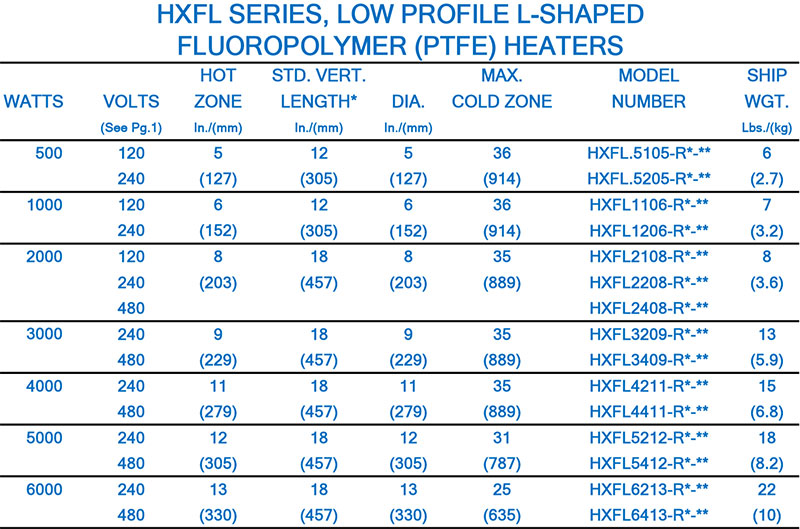

hxfl low profile l shape lg

low profile bottom heater l shape

For Pricing Information Please Telephone or Email - Thank You!
